  • LINKS COMPUTERIZED
    JACQUARD

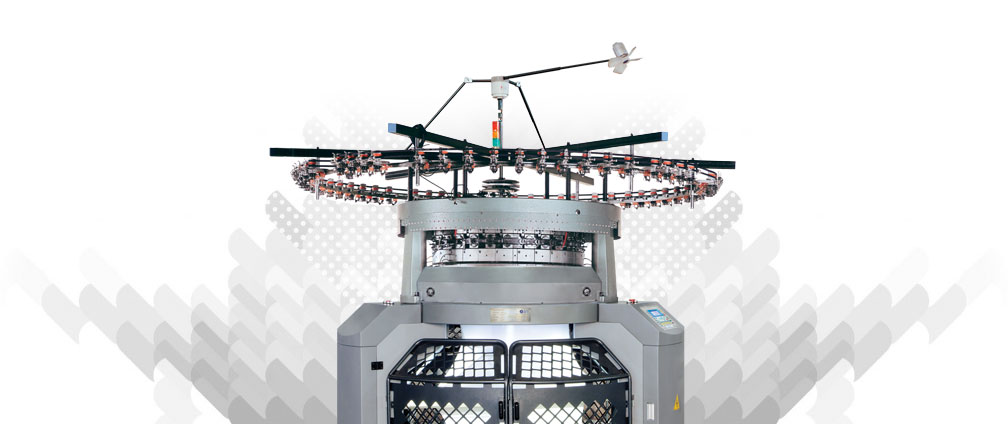

    Joula Links Computerized
    Jacquard Machines

High Quality and Precise Design



All of the knitting element of the machine is carefully designed by advanced CAD tools and precisely implemented using high quality CNC machines results in higher machine stability in high mechanical speeds as well as longer life span. Also, the camboxes of each type are interchangeable. The quality and elegance of final fabric is increased because of coordination of knitting components.

Specifications



Needle quantity per gauge and diameter

Diameter Gauge Price Feeder
30” 12-19 50,000-60,000$ 24
34” 28
Diameter RPM
30” 15-17
34” 13-15
Diameter Fabric Width (cm)
30” 130-150
34” 180-200
Diameter 12Gauge 13Gauge 14Gauge 15Gauge 16Gauge 17Gauge 18Gauge 19Gauge
30” 1128 1224 1296 1392 1488 1584 1680 1776
34” 1272 1368 1488 1584 1704 1800 1900 2016
Higher production

More feeders, precise and high speed (e.g.: 34’’ 15g 28F the production could be 200kg-300kg depending the feeding yarns)

High Reliability

durable computer needle selection system with quick and low failure rate response in reading unlimited patterns through jacquard controller

Compliance with different yarn

Suitable to do knitting mercerized cotton, polyester cover cotton, stripped fabric, scouring pads, single and double lacoste mesh fabric, spandex.

Units

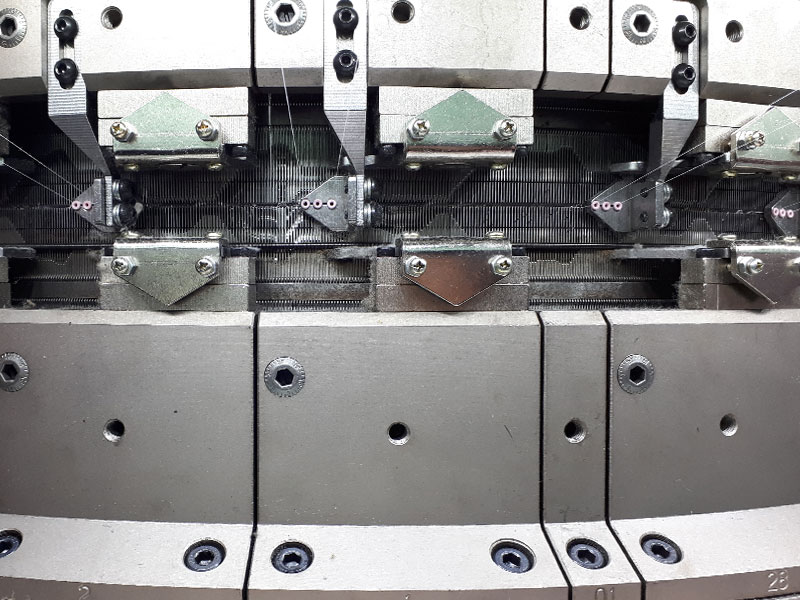

Double Jersey Cambox

The cambox is designed to achieve more thermal conductance therefore better cooling process


High Cost-effective Positive Feeder

NEO-KNIT makes a great change on its material, technology and appearance, providing a new and high-performanced feeder for the market. Aluminum alloy chassis ensures high intension, no distortion and corrosion proof,LED light gives long life cycle and clearly visible from any operator position.Electrostatic prevention design avoids dust accumulation.


PULSONIC 5.2 Pressure Oiler

Optimum lubrication for needles and lifters The PULSONIC 5.2 lubrication system precisely meters a small amount of oil per pulse to ensure that oil is only distributed to the points required. It is possible to individually program the amount of oil fed to each lubrication point. The system greatly reduces oil consumption. The external surface of the knitting machine remain dryer and the number of oil spots on the knitted fabric is greatly reduced.


Motor Full Access

The main motor cabin has been equipped with a door which helps to direct and full access to the main motor in service time.

We are going to make knitting machine smarter using
technolgy and experience to meet Industrial parameters.

Preference



Premier Brand of Circular kntting Machine in Iran

Higher precision and quality

The best raw material and the original parts from American, German, Italian and Japanese brands have been used in the knitting machine production line, Precise cam system reduce loss and increase average rotating speed of machine

Economic

Reasonable price, fair payment policy, install and setup service, periodic visits, spare parts supply and after-sales services

Produce high quality fabric

Robustness and machine stability (less vibration) results best quality production

USB connection

Pattern data can easily transfer to machine via USB device
