  • DOUBLE JERSEY

    Joula Double Jersey
    Circular Knitting Machines

High Quality and Precise Design



All of the knitting element of the machine is carefully designed by advanced CAD tools and precisely implemented using high quality CNC machines results in higher machine stability in high mechanical speeds as well as longer life span. Also, the camboxes of each type are interchangeable. The quality and elegance of final fabric is increased because of coordination of knitting components.
standard machine has 2 track in dial and 4 tracks in cylinder

Specifications



According to the customer order, it may have 2, 2.1, 2.5, or 2.8 feeders per diametrical inch

Model Dia Gauge Feeder Per Inch Number of Feeder for a sample 36’’ Machine Price
JLDJ-2.0F 11’’-44’’ 8-40 2/2.1 72/76 30,000-35,000$
JLDJ-H 11’’-44’’ 8-40 4/4.2 144/152 35,000-40,000$
Compliance with different yarn

Suitable to fabricate mercerized cotton, polyester cover cotton, stripped fabric, scouring pads, single and double lacoste mesh fabric, spandex.

Multi-feeder convertion

The multi-feeder machine can be converted to normal feeder machine through cam substitution.

Production fabric

Produced fabrics can be used to vest, T-shirt, sportswear, aerbic suit and swimming suit.

Units

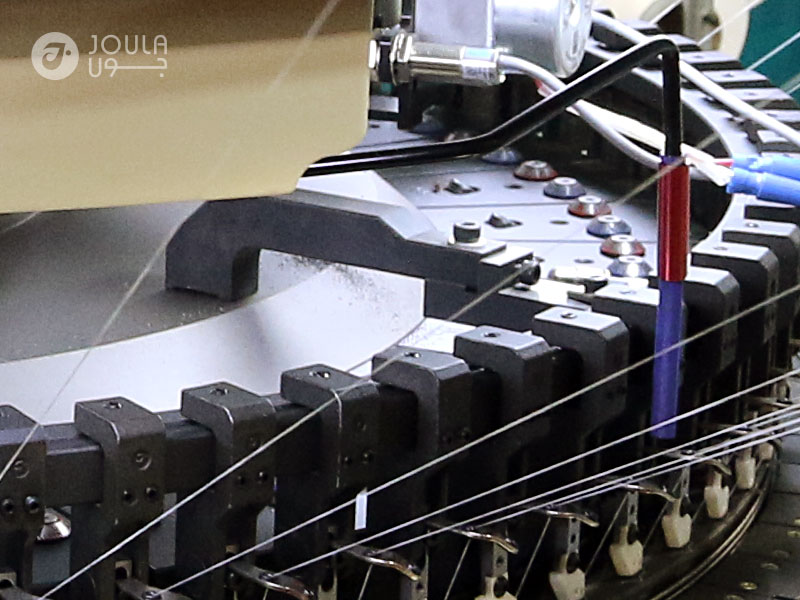

Double Jersey Cambox

Joula double jersey cam box is designed to achieve more thermal conductance therefore better cooling process.


Cylinder and Dial Needle

To achieve more convenience, Joula make the same needle for cylinder and dial.

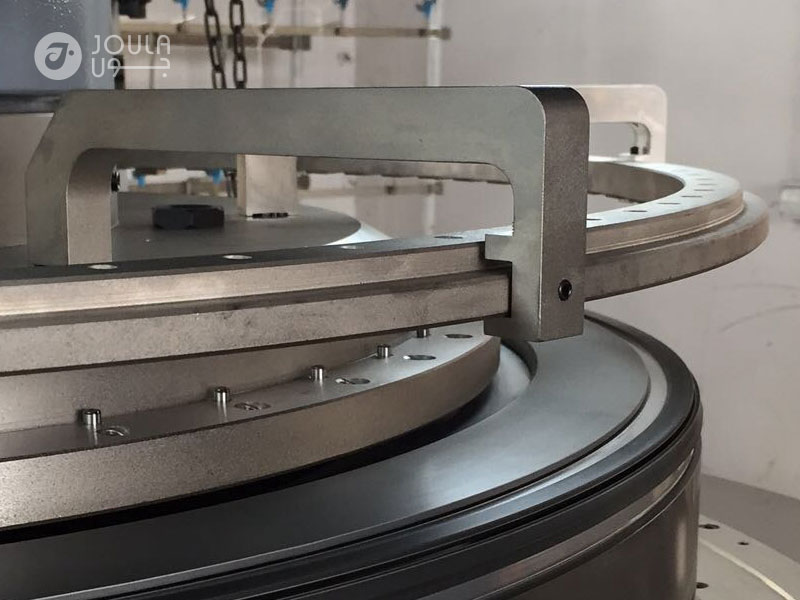

The Stand of the Ring

The yarn guides of Joula double jersey machine are installed on a ring which is lay on 6 stands.


High Cost-effective Positive Feeder

NEO-KNIT makes a great change on its material, technology and appearance, providing a new and high-performanced feeder for the market. Aluminum alloy chassis ensures high intension, no distortion and corrosion proof,LED light gives long life cycle and clearly visible from any operator position.Electrostatic prevention design avoids dust accumulation.


PULSONIC 5.2 Pressure Oiler

Optimum lubrication for needles and lifters The PULSONIC 5.2 lubrication system precisely meters a small amount of oil per pulse to ensure that oil is only distributed to the points required. It is possible to individually program the amount of oil fed to each lubrication point. The system greatly reduces oil consumption. The external surface of the knitting machine remain dryer and the number of oil spots on the knitted fabric is greatly reduced.

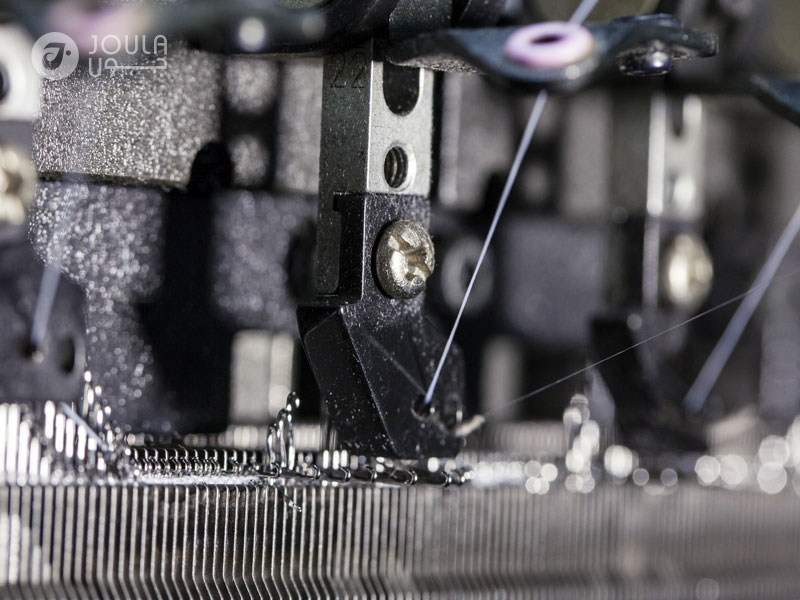

Yarn Guide

Using the Zirconium yarn guide, increases the longevity of yarn guide and also, causes the better sight of operator. In this type of yarn guide the lycra wheel is designed to be fixed which causes easy adjustment.


Motor Full Access

The main motor cabin has been equipped with a door which helps to direct and full access to the main motor in service time.

Standard Part and Accessories


Model Brand
Invertor 380V Emersun/Delta USA/Taiwan
Motor 380V TECO Taiwan
Oiler Pulsonic 5.2 Memminger Germany
Feeder NEO Memminger China
Lycra Feeder SER /SER-T5 SMG China
Creels Aluminum tube Fulong Taiwan
Take Down System One Way/Two way Mechanical YL Taiwan
Needle GB, Organ, Shibata Germany/Japan
Control Panel Digital Taiwan
Cylinder

Classic Cylinder Taiwan

Belt

Made in Italy Megadyne Belt

Ballbearing

Ballbearing NSK Japanese

Ballbearing

Ballbearing Central Adjustment System

Graduator

Taiwanese very precise Snail type Graduator

Cambox

Cams and Cambox WL brand (Taiwanese Origin Factory in china)

Special Design


Joula Small Diameter Double Circular Knitting Machine
Small diameter
Joula Multi-Feeder Double Circular Knitting Machine
Multi-Feeder

Preference



Premier Brand of Circular kntting Machine in Iran

Oil-bath main plate

main plate and main gears in driving system are floated in oil-bath so that lower maintenance require, reliability of machine and running speed increase and running noise reduce,

High Quality Material

The best raw material and the original parts from American, German or Japanese brands have been used in the knitting machine production line.

Economic

Reasonable price, fair payment policy, install and setup service, periodic visits, spare parts supply and after-sales services
