  • COMPUTERIZED JACQUARD

    Computerized Single and Double
    Jacquard Machines

High Quality and Precise Design



All of the knitting element of the machine is carefully designed by advanced CAD tools and precisely implemented using high quality CNC machines results in higher machine stability in high mechanical speeds as well as longer life span. Also, the camboxes of each type are interchangeable. The quality and elegance of final fabric is increased because of coordination of knitting components.

Specifications


Model Name Diameter Gauge RPM Estimated Price
Single Jacquard JLCSJ 26-40 10-36 15-18 45,000-55,000$
Double Jacquard JLCDJ 26-40 10-36 15-18 50,000-65,000$
3 way actuator

3-way/2-way actuator system (knit,miss and tuck) with stable and user friendly operating system

High Reliability

durable computer needle selection system with quick and low failure rate response in reading unlimited patterns through jacquard controller

Compliance with different yarn

Suitable to do knitting mercerized cotton, polyester cover cotton, stripped fabric, scouring pads, single and double lacoste mesh fabric, spandex.

Units

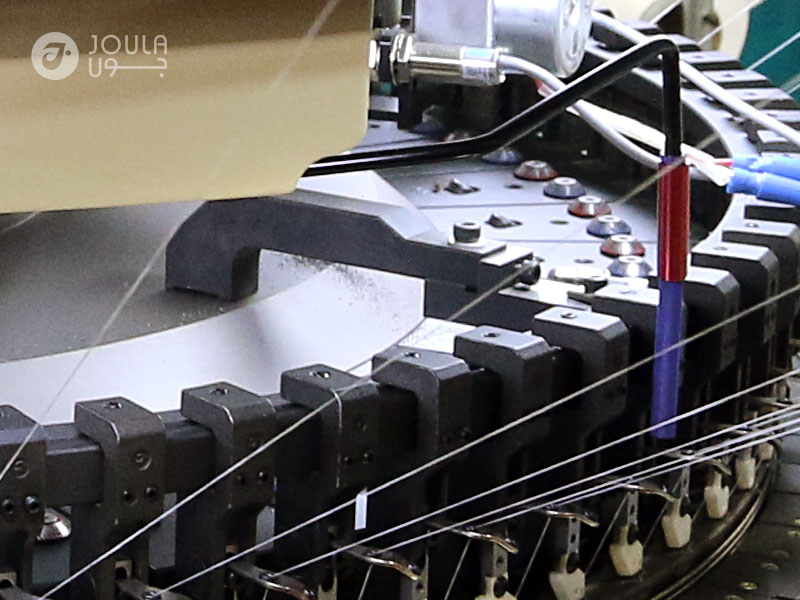

Cambox

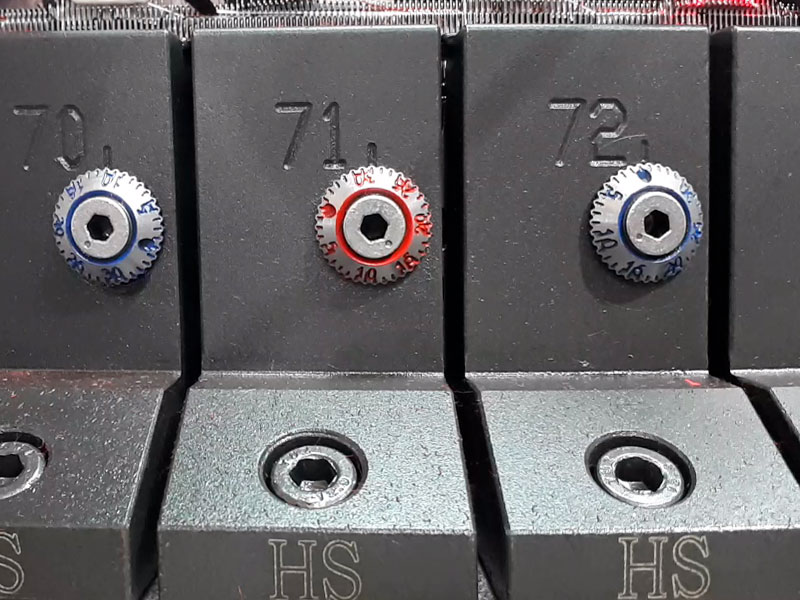

Joula cambox is designed to achieve ... better cooling process. One adjustment graduator cambox let technician have easier fabric adjustment.


Yarn Guide

Using the Zirconium yarn guide, increases the longevity of yarn guide and also, causes the better sight of operator. In this type of yarn guide the lycra wheel is designed to be fixed which causes easy adjustment.


High Cost-effective Positive Feeder

MINI+ electronic feeder -manufactured in LGL factory in HangZhou (China) under LGL strict management control- combines reduced dimensions, user-friendliness and the important recent technical innovations.
automatic speed adjustment fulfilling machine requirement up to 950m/min and available for installation in vertical or horizontal position,


The Stand of the Ring

The yarn guides of Joula double jersey machine are installed on a ring which is lay on 6 stands.


PULSONIC 5.2 Pressure Oiler

Optimum lubrication for needles and lifters The PULSONIC 5.2 lubrication system precisely meters a small amount of oil per pulse to ensure that oil is only distributed to the points required. It is possible to individually program the amount of oil fed to each lubrication point. The system greatly reduces oil consumption. The external surface of the knitting machine remain dryer and the number of oil spots on the knitted fabric is greatly reduced.


Motor Full Access

The main motor cabin has been equipped with a door which helps to direct and full access to the main motor in service time.

WE ARE GOING TO MAKE KNITTING MACHINE SMARTER USING TECHNOLGY AND EXPERIENCE TO MEET INDUSTRIAL PARAMETERS.

Preference



Premier Brand of Circular kntting Machine in Iran

Produce high quality fabric

Robustness and machine stability (less vibration) results best quality production

Higher precision and quality

The best raw material and the original parts from American, German, Italian and Japanese brands have been used in the knitting machine production line, Precise cam system made by WL (Taiwanese origin company) reduce loss and increase average rotating speed of machine

Economic

Reasonable price, fair payment policy, install and setup service, periodic visits, spare parts supply and after-sales services

Wire bearing main plate

Wire bearing system used in main plate made by Franke (German brand)

USB connection

Pattern data can easily transfer to machine via USB device

UPS reserve battery

A reserve UPS battery for saving data in case of power off
